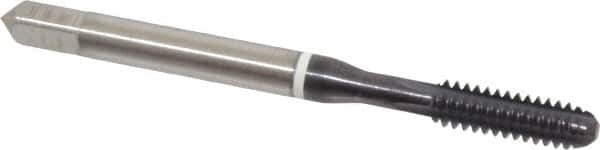

Guhring - #10-24 UNC 2B 4 Flute FIREX Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 2-3/8" OAL, Oversize
Item #: 60638327
Brand: Guhring
Model #: 9039370048260
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (Inch) | #10-24 |
| Class of Fit | 2B |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | FIREX |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Inch) | 2-3/8 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Square Size (Decimal Inch) | 0.1520 |
| Material Application | Abrasive Material; Cast Iron |
