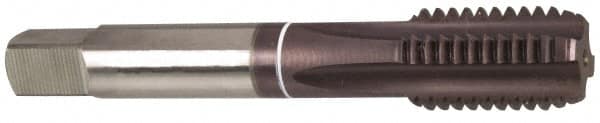

Guhring - M6x1.00 Metric Coarse 6HX 4 Flute TiAlN/TiN Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 2-1/2" OAL, Oversize
Item #: 60638244
Brand: Guhring
Model #: 9039360060000
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M6x1.00 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | TiAlN/TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.50000 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Size (Decimal Inch) | 0.1910 |
| Material Application | Abrasive Material; Cast Iron |
