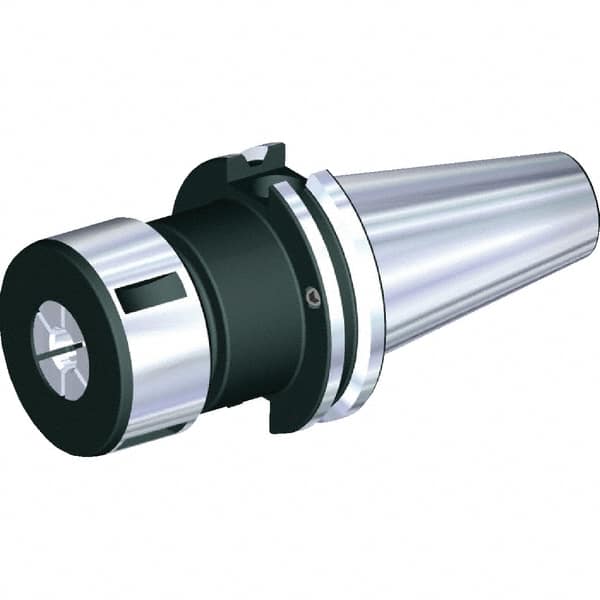

Kennametal - 3/64" to 3/4" Capacity, 6" Projection, CAT40 Taper Shank, TG/PG 75 Collet Chuck - 8.687" OAL
Item #: 60364510
Brand: Kennametal
Model #: 1261622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | Single Angle |
| Collet Series | TG/PG 75 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Inch) | 6 |
| Projection (Decimal Inch) | 6.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Inch) | 3/64 |
| Minimum Collet Capacity (mm) | 1.19 |
| Maximum Collet Capacity (mm) | 19.05 |
| Maximum Collet Capacity (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 8.6870 |
| Actuator Type | Wrench |
| Nose Diameter (Decimal Inch) | 1.9700 |
| PSC Code | 5136 |
| Balanced to (RPM) | 12000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.9690 |
| Collet Nut Diameter (mm) | 50.01 |
