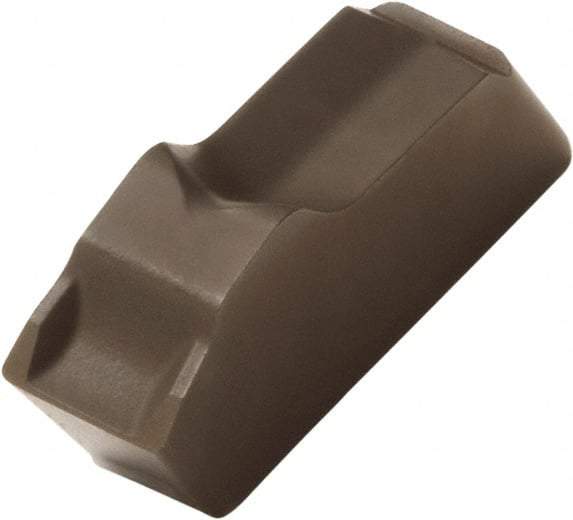

Seco - 150.1012 12 TGP35 Grade, 1/4" Cutting Width, Carbide Cutoff Insert - 6° Neutral Lead Angle, 0.012" Cnr Rad, TiCN/Al2O3 Coated, Single End
Item #: 60175833
Brand: Seco
Model #: 57898
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 12 |
| Lead Angle Direction | Neutral |
| Lead Angle | 6 |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Material Grade | C6 |
| Manufacturer's Grade | TGP35 |
| Coating | TiCN/Al2O3 |
| Series | 150.10 |
| Chipbreaker | 12 |
| Coating Process | CVD |
| Overall Length (mm) | 8.99 |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Corner Radius (mm) | 0.3048 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 6 |
| Overall Width (mm) | 6.35 |
| Overall Width (Decimal Inch) | 0.2500 |
