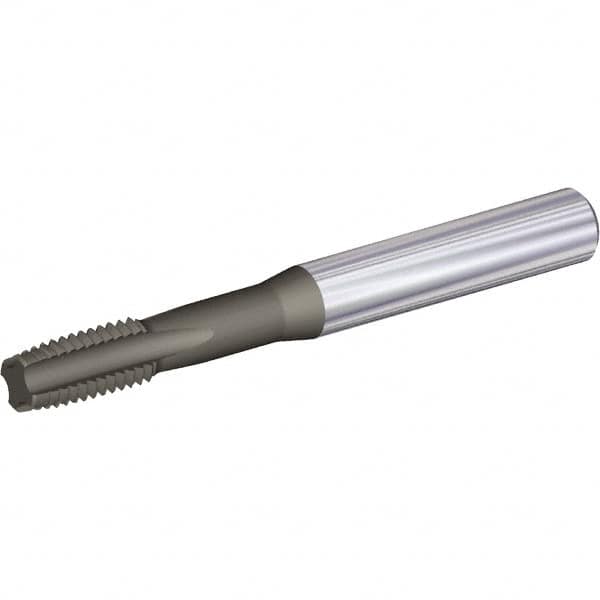

Kennametal - 3/8-16 UNC 3BX 4 Flute AlCrTiN Finish Solid Carbide Straight Flute Standard Hand Tap - Plug, Right Hand Thread, 3.54" OAL, 3/4" Thread Length, Oversize
Item #: 59227165
Brand: Kennametal
Model #: 5551036
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Aluminum chromium nitride (AlCrN) and titanium silicon nitride (TISIN) is a multi-layered coating that is extremely wear resistant. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 3/8-16 |
| Class of Fit | 3BX |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | Solid Carbide |
| Finish/Coating | AlCrTiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNC |
| Overall Length (Decimal Inch) | 3.54000 |
| Overall Length (Inch) | 3.5400 |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Material Grade | KCK17 |
| Series/List | T340 |
| Thread Length (Decimal Inch) | 0.7500 |
| Thread Length (Inch) | 3/4 |
| Thread Length (mm) | 19.00 |
| Neck Length (Inch) | 0.8200 |
| Tapping Depth (mm) | 40 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (mm) | 9.53 |
| Shank Length (Decimal Inch) | 1.74 |
| Shank Length (mm) | 44 |
