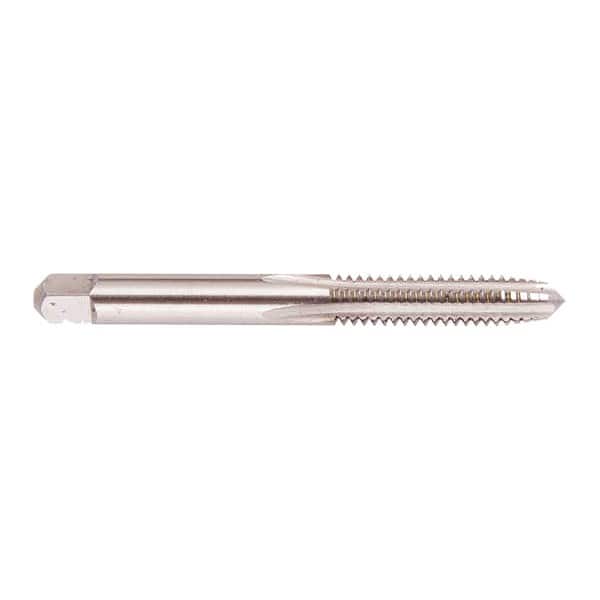

Regal Cutting Tools - M3.5x0.60 Metric Coarse 3 Flute Bright Finish High Speed Steel Straight Flute Standard Hand Tap - Taper, Right Hand Thread, 2" OAL, 11/16" Thread Length, D1 Limit, Oversize
Item #: 58875246
Brand: Regal Cutting Tools
Model #: 020104AS
Exact Tooling IR#: 04
Features and Benefits
Taper chamfers also known as starter taps have a longer chamfer and require a less aggressive cutting action. They have 7 to 10 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M3.5x0.60 |
| Thread Limit | D1 |
| Number of Flutes | 3 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.6875 |
| Thread Length (Inch) | 11/16 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
