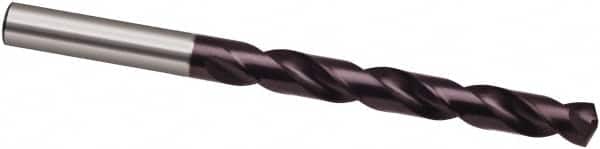

Guhring - Letter I 130° Cobalt Jobber Drill - FIREX Finish, Right Hand Cut, Spiral Flute, 109mm OAL, Cone Relief Point
Item #: 58607631
Brand: Guhring
Model #: 9024580069000
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Letter) | I |
| Drill Bit Size (Decimal Inch) | 0.2717 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | FIREX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Length (mm) | 69.00 |
| Overall Length (mm) | 109.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Cone Relief |
| Shank Diameter (mm) | 6.90 |
| Shank Diameter (Decimal Inch) | 0.2717 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinning |
| Drill Bit Grade | High Performance |
| Series/List | 2458 |
