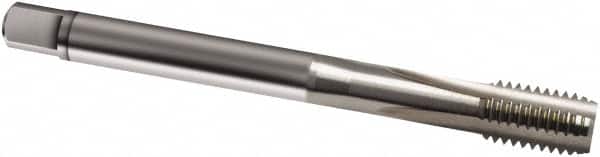

Guhring - M24x2.00 Metric Fine 6H 4 Flute Bright Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 140mm OAL, D6/D7 Limit, Oversize
Item #: 58577040
Brand: Guhring
Model #: 9008300240080
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M24x2.00 |
| Class of Fit | 6H |
| Thread Limit | D6/D7 |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (mm) | 140.00 |
| Oversize | No |
| Series/List | 830 |
