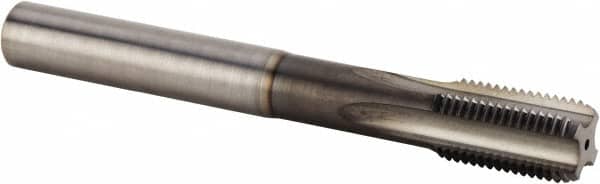

Kennametal - M10x1.00 Metric Fine 6HX 3 Flute TiN Finish Solid Carbide Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 90mm OAL, 18mm Thread Length, Oversize, Through Coolant
Item #: 58508607
Brand: Kennametal
Model #: 3527438
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M10x1.00 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Fine |
| Overall Length (Decimal Inch) | 3.54330 |
| Overall Length (mm) | 90.00 |
| Oversize | No |
| Series/List | T471 |
| Thread Length (Decimal Inch) | 0.7087 |
| Thread Length (mm) | 18.00 |
| Neck Length (Inch) | 55/64 |
| Tapping Depth (mm) | 40 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.74 |
| Shank Length (mm) | 44 |
| Material Application | Non-Ferrous Materials |
