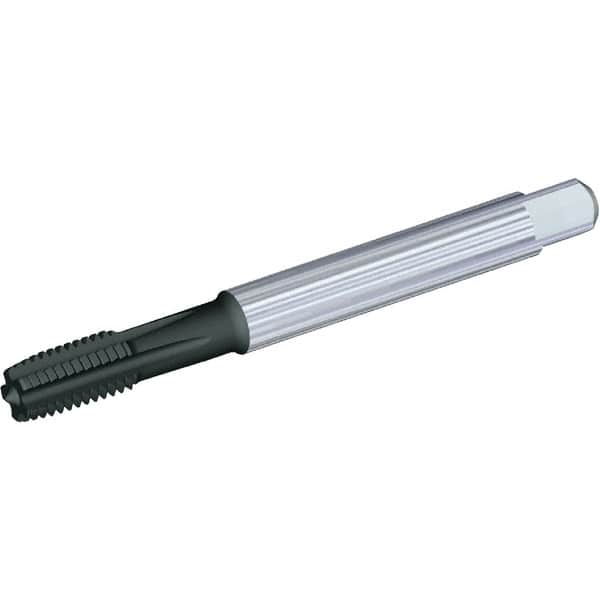

Kennametal - M14x1.50 Metric Fine 6HX 5 Flute TiAlN Finish Solid Carbide Straight Flute Machine Tap - Plug, Right Hand Thread, 110mm OAL, 24mm Thread Length, Oversize
Item #: 58505694
Brand: Kennametal
Model #: 4157965
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M14x1.50 |
| Class of Fit | 6HX |
| Number of Flutes | 5 |
| Chamfer | Plug |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Fine |
| Overall Length (Decimal Inch) | 4.33070 |
| Overall Length (mm) | 110.00 |
| Oversize | No |
| Series/List | T410 |
| Thread Length (Decimal Inch) | 0.9450 |
| Thread Length (mm) | 24.00 |
| Neck Length (Inch) | 25/32 |
| Tapping Depth (mm) | 44 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Diameter (mm) | 14.00 |
| Shank Length (Decimal Inch) | 2.60 |
| Shank Length (mm) | 66 |
| Square Size (Decimal Inch) | 0.4330 |
| Square Size (mm) | 11.00 |
| Material Application | Hardened Materials |
