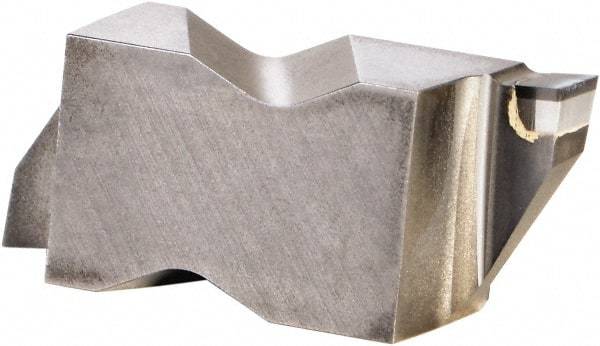

Kennametal - 3088NGP Grade KD1425, 2.24mm Cutting Width Diamond Tipped Grooving Insert - 2.39mm Max Depth of Cut, Right Hand, 0.19mm Corner Radius, Uncoated
Item #: 58446717
Brand: Kennametal
Model #: 3639221
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | NGP |
| Insert Size | 3088 |
| Material | Diamond Tipped |
| Cutting Width (mm) | 2.24 |
| Cutting Width (Decimal Inch) | 0.0880 |
| Maximum Depth of Cut (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | KD1425 |
| Coating | Uncoated |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 8.74 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Insert Seat Size | 3 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Series | Top Notch |
| Rake | Positive |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch) | 0.1960 |
| Included Angle | 55 |
