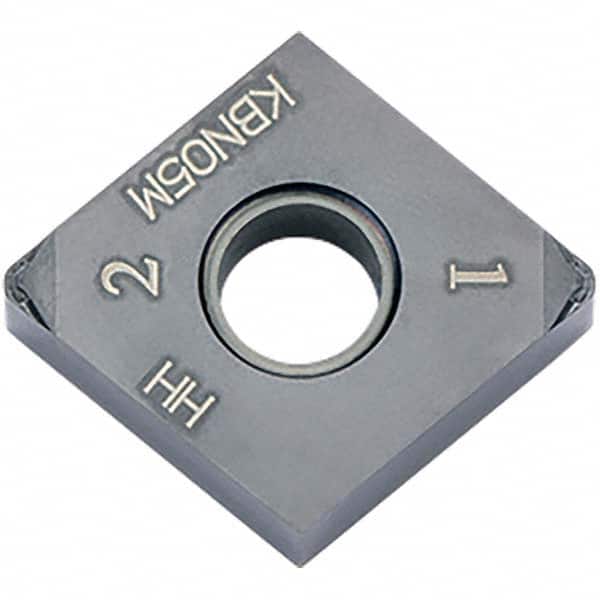

Kyocera - CNGM433 ME-HH Grade KBN05M CBN Turning Insert
Item #: 11382587
Brand: Kyocera
Model #: 8861970
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CNGM |
| Insert Size | 433 |
| Material | CBN |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | KBN05M |
| Coating | Megacoat |
| Chip Breaker | ME-HH |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNGM120412ME-HH |
| Rake | Negative |
| Manufacturers Catalog Number | CNGM433MEHH KBN05M |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Series | CNGM |
| Insert Holding Method | Screw or Clamp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
