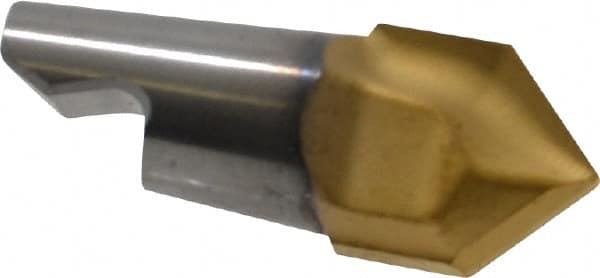

Seco - MM08 M03 Grade T60M Carbide Center Drill Milling Tip Insert - TiAlN/TiN Finish, 2 Flutes, 0.315" Cutting Diam, 0.157" Depth of Cut, 3/8" Extension, 0.175" Cnr Rad
Item #: 56931207
Brand: Seco
Model #: 34245
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM08 |
| Milling Tip Type | Center Drill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Material Grade | C5 |
| Manufacturer's Grade | T60M |
| Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Flutes | 2 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Center Drilling |
| Corner Radius (Decimal Inch) | 0.1750 |
| Coating Process | PVD |
| Chipbreaker | M03 |
| Extension From Holder (Decimal Inch) | 0.3740 |
| Included Angle | 90 |
| Style | MM08-0.315-C90-M03 |
