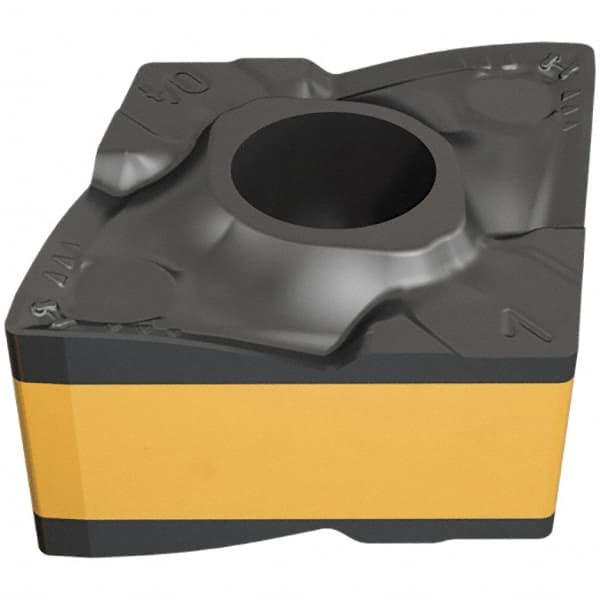

Iscar - CNMX341 M3MW Grade IC6025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 9.52mm Inscr Circle, 4.4mm Thick, 0.4mm Corner Radius
Item #: 55669279
Brand: Iscar
Model #: 5510348
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMX |
| Insert Size | 341 |
| Material | Carbide |
| Length (mm) | 9.67 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1730 |
| Thickness (mm) | 4.40 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC6025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3MW |
| ISO Number | CNMX 341-M3MW |
| Rake | Positive |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5510348 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Multi Use Application | Turning |
| Shape | Diamond |
