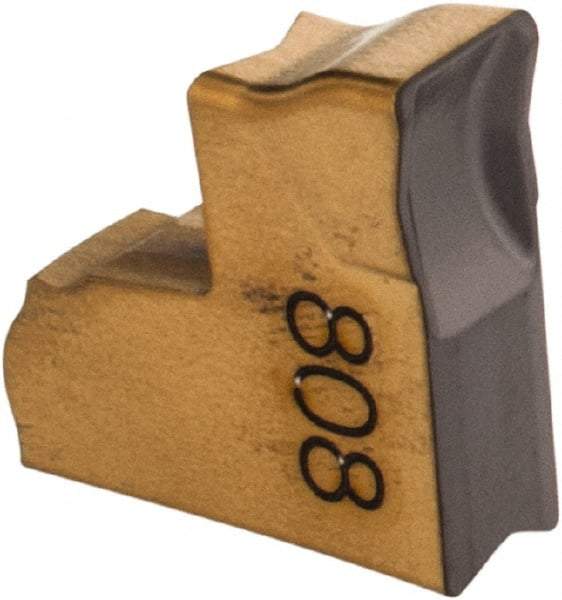

Iscar - TAG CB IC808 Grade, 0.118" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0138" Cnr Rad, TiAlN Coated, Single End
Item #: 55158422
Brand: Iscar
Model #: 6004484
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN |
| Series | Tang-Grip |
| Relief Angle | 7 |
| Chipbreaker | CB |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0138 |
| Corner Radius (mm) | 0.35 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | TAG N3CB |
