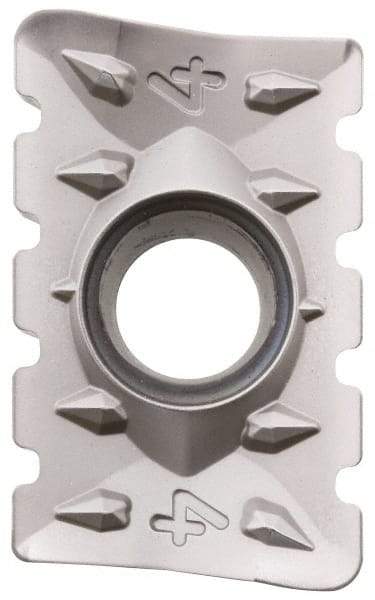

Kyocera - APMT250608 NB4 Grade PR1230 Carbide Milling Insert - Megacoat Finish, 6.35mm Thick, 0.8mm Corner Radius
Item #: 54993407
Brand: Kyocera
Model #: 8832036
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APMT |
| Insert Size | 250608 |
| Material | Carbide |
| Manufacturer's Grade | PR1230 |
| Coating | Megacoat |
| Width (mm) | 15.88 |
| Width (Decimal Inch) | 0.6252 |
| Length (mm) | 25.00 |
| Length (Decimal Inch) | 0.9843 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | NB4 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | APMT250608ERNB4 |
