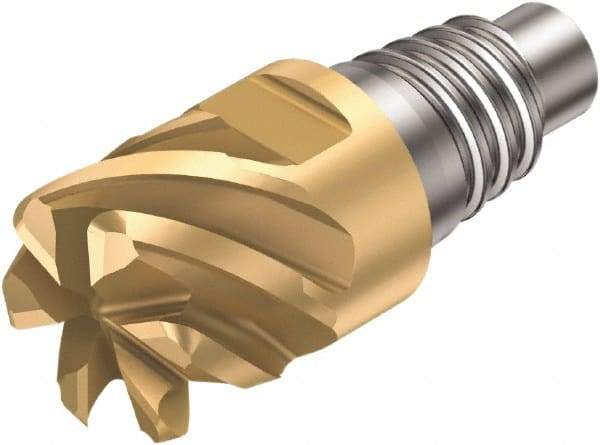

Sandvik Coromant - A316-FM Grade 1030 Carbide End Milling Tip Insert - 12 Flutes, 25mm Cutting Diam, 14mm Depth of Cut, 1" Extension, 1/16" Cnr Rad, 50° Helix
Item #: 54938766
Brand: Sandvik Coromant
Model #: 5856387
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316-FM |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 14.00 |
| Depth of Cut (Decimal Inch) | 0.5512 |
| Number of Flutes | 12 |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.0620 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 1.0079 |
| Helix Angle | 50 |
| Style | A316-FM-L |
| Manufacturers Catalog Number | 5856387 |
