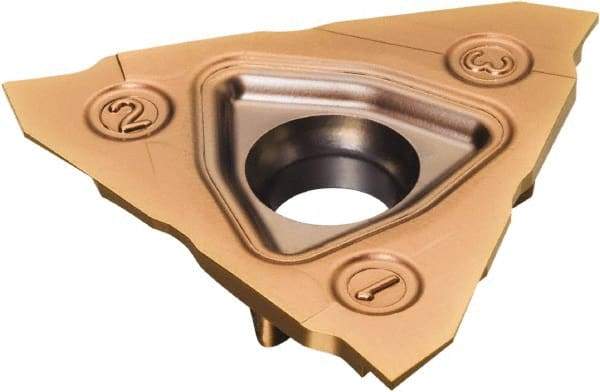

Sandvik Coromant - 300900N123 GS Grade 1125, 0.9mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Neutral, TiAlN Finish
Item #: 54929732
Brand: Sandvik Coromant
Model #: 5736417
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 300900 |
| Material | Carbide |
| Cutting Width (mm) | 0.90 |
| Cutting Width (Decimal Inch) | 0.0354 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 0 |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Series | CoroCut 3 |
| ISO Number | N123T300900000GS1125 |
| Manufacturers Catalog Number | 5736417 |
| Insert Thickness (Decimal Inch) | 0.1469 |
| Insert Thickness (mm) | 3.7300 |
