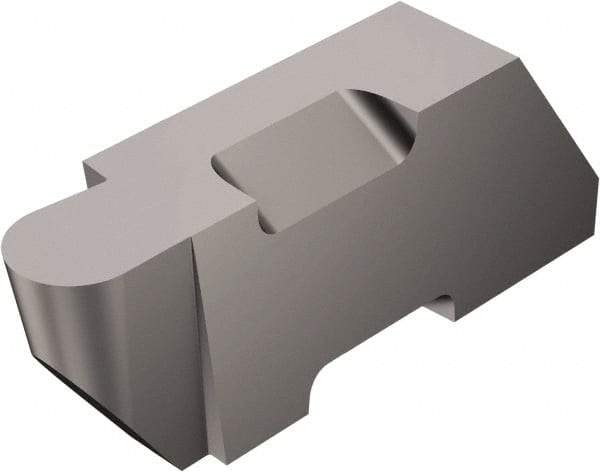

Sandvik Coromant - 4062TLR Grade H13A, Carbide Grooving Insert - 3.81mm Max Depth of Cut, Left Hand, 1/16" Corner Radius, Uncoated
Item #: 54929443
Brand: Sandvik Coromant
Model #: 5753681
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLR |
| Insert Size | 4062 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 3.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 10 |
| Corner Radius (Decimal Inch) | 0.0620 |
| Series | Top Lok |
| Manufacturers Catalog Number | 5753681 |
