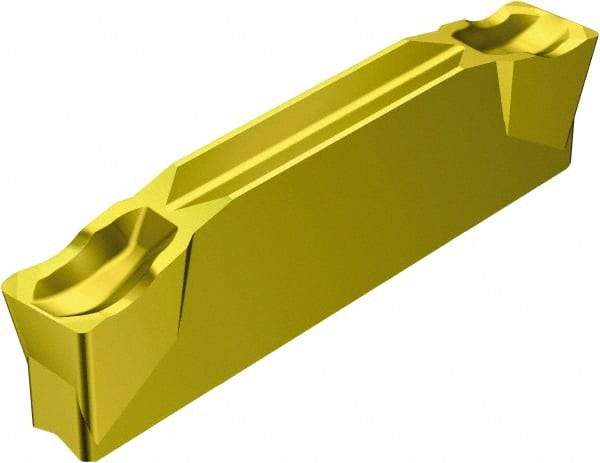

Sandvik Coromant - R123J2J CR 2135 Grade, 0.1969" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0156" Cnr Rad, TiCN/Al2O3/TiN Coated
Item #: 54925938
Brand: Sandvik Coromant
Model #: 5741588
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R123J2 |
| Insert Size | J |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut 1-2 |
| Relief Angle | 6 |
| Chipbreaker | CR |
| Maximum Depth of Cut (mm) | 23.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.9291 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | MTCVD |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | J |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5741588 |
