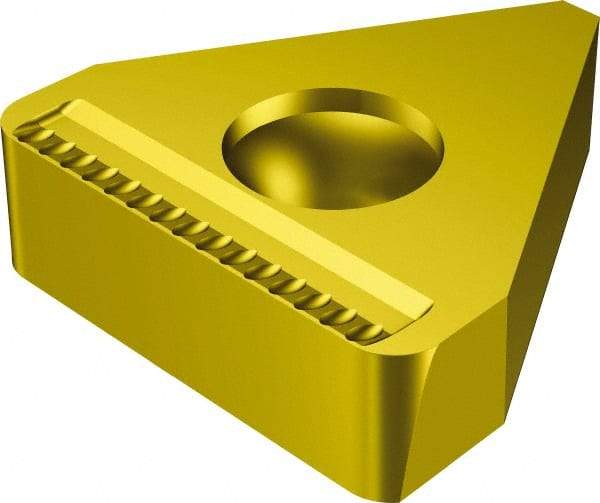

Sandvik Coromant - 0.5BP Grade 235, 5/8" Cutting Width Carbide Grooving Insert - Neutral, 0.76mm Corner Radius, TiCN/TiN Finish
Item #: 54733381
Brand: Sandvik Coromant
Model #: 6791127
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BP |
| Insert Size | 0.5 |
| Material | Carbide |
| Cutting Width (mm) | 15.88 |
| Cutting Width (Inch) | 5/8 |
| Cutting Width (Decimal Inch) | 0.6250 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.77 |
| Cutting Height (Decimal Inch) | 0.1880 |
| Insert Seat Size | 0.5 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting; Plunging |
| Minimum Corner Radius (Decimal Inch) | 0.0260 |
| Maximum Corner Radius (Decimal Inch) | 0.0339 |
| Corner Radius (mm) | 0.76 |
| Corner Radius (Decimal Inch) | 0.0299 |
| Coating Process | CVD |
| Overall Length (mm) | 18.67 |
| Overall Length (Decimal Inch) | 0.7350 |
| Series | T-Max |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | BP-625030 235 |
| Manufacturers Catalog Number | BP-625030 235 |
| Overall Width (mm) | 15.88 |
| Overall Width (Inch) | 5/8 |
| Overall Width (Decimal Inch) | 0.6250 |
| Insert Thickness (Decimal Inch) | 0.1880 |
