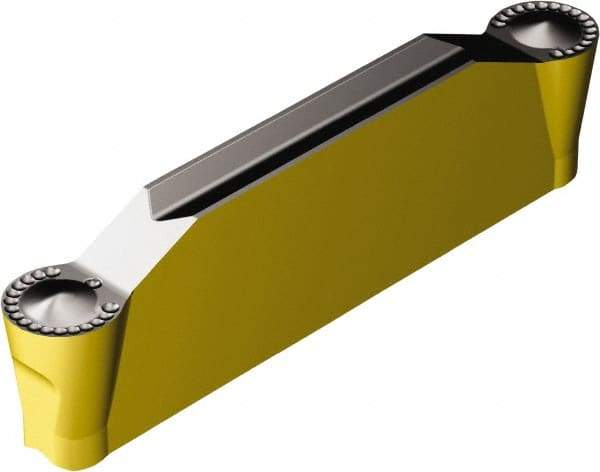

Sandvik Coromant - J2N123x2 RM 1/4" Cutting Width Carbide Grooving Insert - 22mm Max Depth of Cut, Neutral, 1/8" Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54731351
Brand: Sandvik Coromant
Model #: 6532117
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | J2 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Inch) | 1/4 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | J |
| Chipbreaker | RM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 3.18 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.125 |
| Coating Process | MT-CVD |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123J2-0635-RM 4325 |
| Manufacturers Catalog Number | N123J2-0635-RM 4325 |
| Insert Thickness (Decimal Inch) | 0.1713 |
