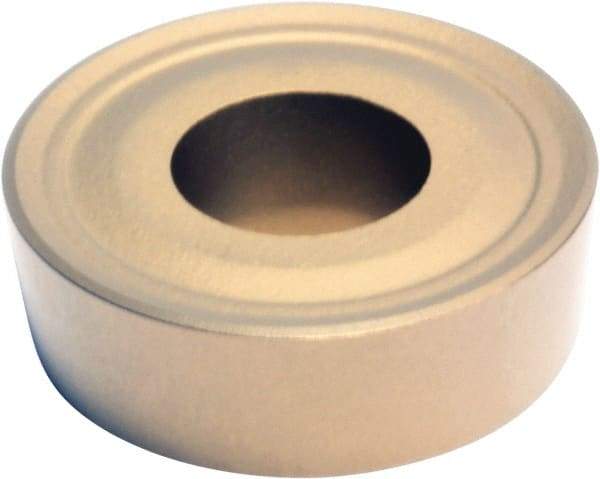

Sumitomo - RCMX120400 RP Grade AC700G Carbide Turning Insert - TiC Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 53980892
Brand: Sumitomo
Model #: 19DY311
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 120400 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | AC700G |
| Coating | TiC |
| Chip Breaker | RP |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Rake | Negative |
| Rake Angle | -15 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Insert Holding Method | Screw |
| Shape | Round |
