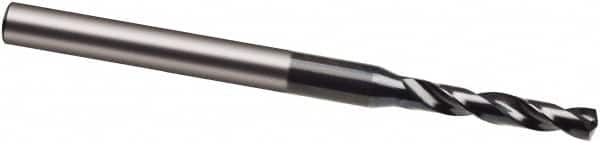

Micro Drill Bit: 0.0925″ Dia, 140 °, Solid Carbide TiAlN Finish, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6405
Item #: 53727939
Brand: Guhring
Model #: 9064050023500
Product Specifications
| Drill Bit Size (mm) | 2.35 |
| Drill Bit Size (Decimal Inch) | 0.0925 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 19.00 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Series | 6405 |
| Overall Length (mm) | 62.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | Faceted |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | m7 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; N |
| Shank Diameter (mm) | 4.00 |
| Flute By Diameter Ratio | 5xD |
| Material Grade | K40 |
| Drill Bit Grade | High Performance |
| Spiral Type | Regular |
