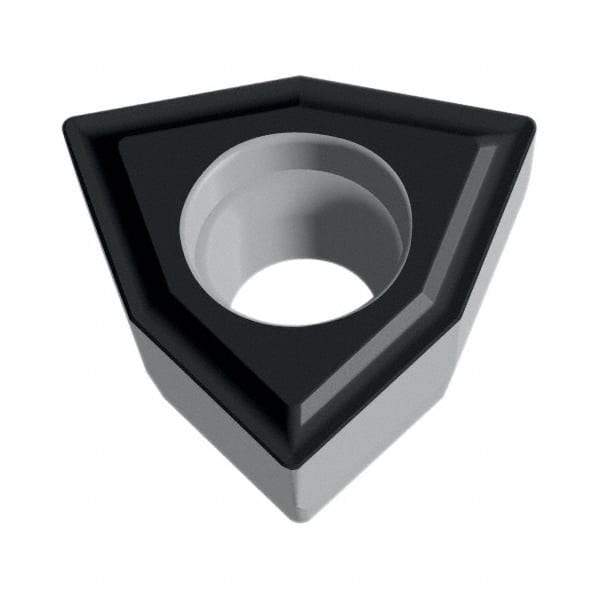

Walter - WOMX05T304 B57 Grade WKP35S Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Trigon, 8mm Inscribed Circle
Item #: 53081436
Brand: Walter
Model #: 6381911
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOMX |
| Insert Size | 05T304 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 5.29 |
| Length (Decimal Inch) | 0.2083 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | B57 |
