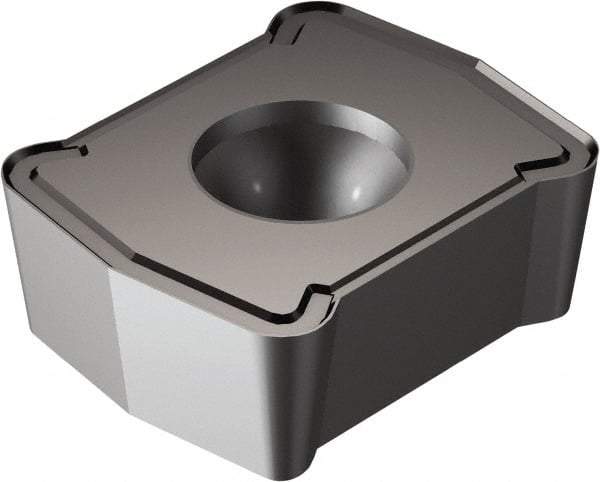

Sandvik Coromant - LCMX030304 58 3040 Grade Carbide Indexable Insert Drill - TiCN/Al2O3 Coated, Square, 0.1252" Thick, 0.0157" Cnr Rad, 7° Relief Angle
Item #: 52921780
Brand: Sandvik Coromant
Model #: 5735101
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LCMX |
| Insert Size | 030304 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 7 |
| Coating | TiCN/Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 58 |
