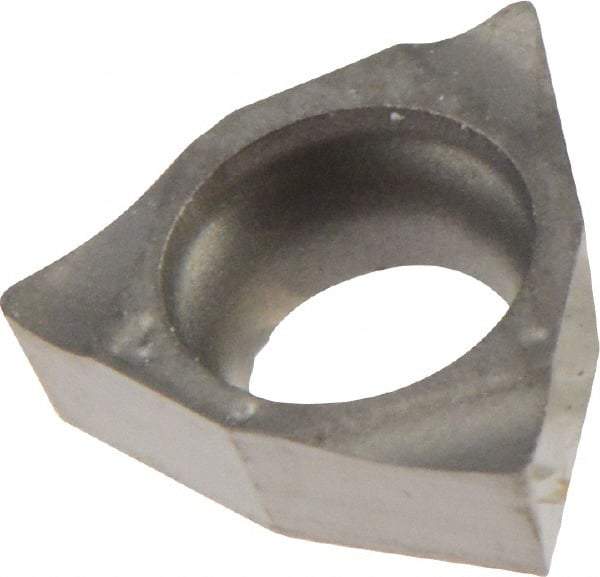

Iscar - WCGT020102 Grade IC30N Cermet Turning Insert - 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.0079" Corner Radius
Item #: 52742301
Brand: Iscar
Model #: 5504403
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WCGT |
| Insert Size | 020102 |
| Material | Cermet |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0858 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC30N |
| Material Grade | C6/C7 |
| Rake | Positive |
| Relief Angle | 7 |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Shape | Trigon |
