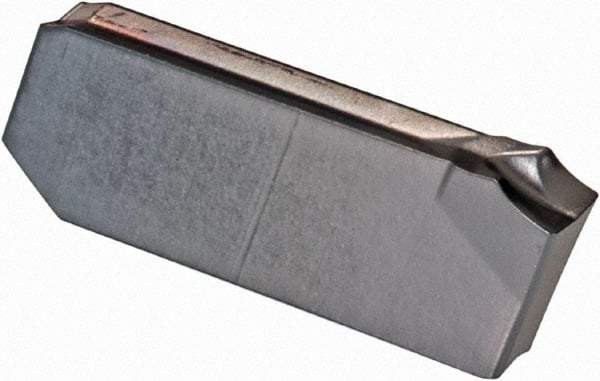

Iscar - GIM2.2 J IC354 Grade, 0.087" Cutting Width, Carbide Cutoff Insert - Right Hand Lead Angle, 0.0067" Cnr Rad, TiN/TiCN Coated, Single End
Item #: 52714599
Brand: Iscar
Model #: 6402292
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GIM |
| Insert Size | 2.2 |
| Lead Angle Direction | Right Hand |
| Cutting Width (mm) | 2.21 |
| Cutting Width (Decimal Inch) | 0.0870 |
| Material Grade | P40 |
| Manufacturer's Grade | IC354 |
| Coating | TiN/TiCN |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Chipbreaker | J |
| Full Radius | No |
| Multi-Use Application | Slitting |
| Coating Process | PVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Corner Radius (Decimal Inch) | 0.0067 |
| Corner Radius (mm) | 0.17 |
| Insert Holding Method | Self Grip |
| Manufacturers Catalog Number | GIM 2.2J-8RA |
