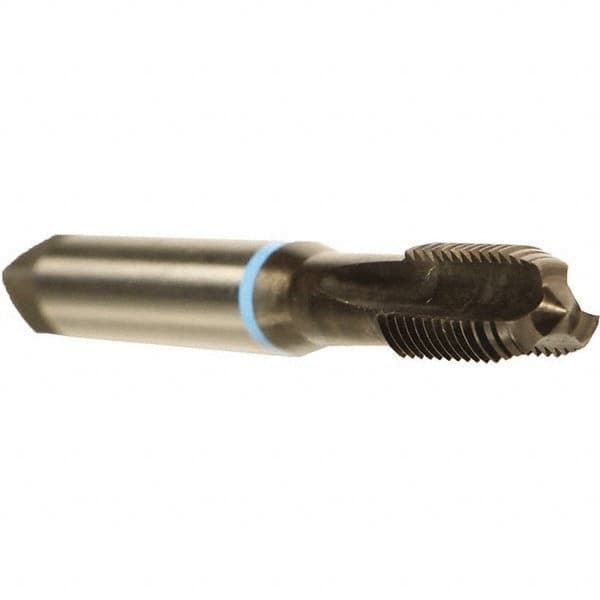

Emuge - M5x0.80 Modified Bottoming RH 6HX Nitride Cobalt 3-Flute Straight Flute Machine Tap
Item #: 52305414
Brand: Emuge
Model #: B010T001.0050
Product Specifications
| Tap Type | Machine Tap |
| Thread Size (mm) | M5x0.80 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Nitride |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.75590 |
| Overall Length (mm) | 70.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.5906 |
| Thread Length (mm) | 15.00 |
| Neck Length (mm) | 25.00 |
| Neck Length (Decimal Inch) | 0.9843 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.77 |
| Shank Length (mm) | 45 |
| Square Size (Decimal Inch) | 0.1929 |
| Square Size (mm) | 4.90 |
| Material Application | Duroplastics; Synthetics |
| Material Application2 | Duroplastics; Synthetics |
