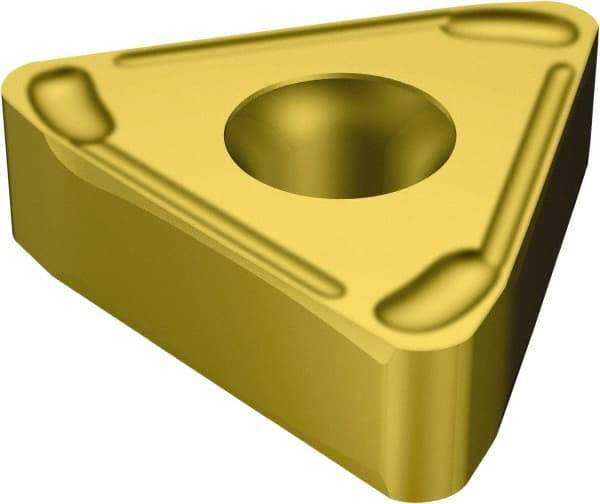

Sandvik Coromant - TNMX330931 MF Grade 2015 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 60° Triangle, 3/4" Inscr Circle, 3/8" Thick, 1/16" Corner Radius
Item #: 52085974
Brand: Sandvik Coromant
Model #: 5754789
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 330931 |
| Material | Carbide |
| Length (mm) | 5.00 |
| Length (Decimal Inch) | 0.1969 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Thickness (mm) | 9.53 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.5875 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | 2015 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MF |
| Insert Length (Decimal Inch) | 0.1969 |
| OverallLength (mm) | 33.00 |
| Overall Length (Decimal Inch) | 1.2991 |
| Hole Diameter (mm) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| ISO Number | TNMX 33 09 31-MF 2015 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
