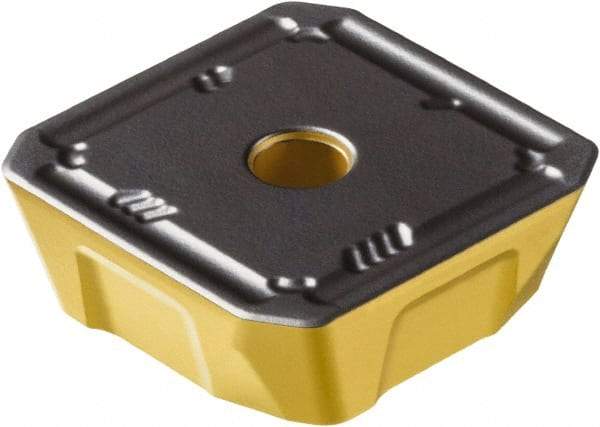

Sandvik Coromant - 360R2807 PH Grade 4230 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 7.94mm Thick, 28.47mm Inscribed Circle, 1.7mm Corner Radius
Item #: 52066016
Brand: Sandvik Coromant
Model #: 5759189
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 360R |
| Insert Size | 2807 |
| Material | Carbide |
| Manufacturer's Grade | 4230 |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 20.00 |
| Inscribed Circle (mm) | 28.47 |
| Inscribed Circle (Decimal Inch) | 1.1209 |
| Thickness (mm) | 7.94 |
| Thickness (Decimal Inch) | 0.3126 |
| Corner Radius (Decimal Inch) | 0.0669 |
| Corner Radius (mm) | 1.70 |
| Hole Diameter (mm) | 3.80 |
| Hole Diameter (Decimal Inch) | 0.1496 |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PH |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 360R-28 07M-PH 4230 |
