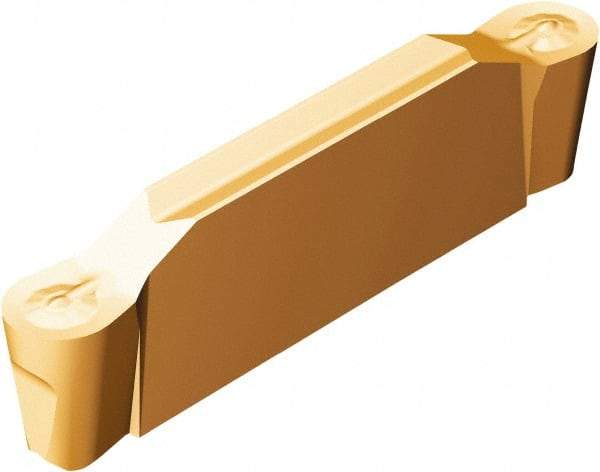

Sandvik Coromant - F2N123x2 RO 1/8" Cutting Width Carbide Grooving Insert - 18.6mm Max Depth of Cut, Neutral, 1/16" Corner Radius, TiAlN Finish
Item #: 52029345
Brand: Sandvik Coromant
Model #: 5735863
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x2 |
| Insert Size | F2 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Inch) | 1/8 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 18.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.7320 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Insert Seat Size | F |
| Chipbreaker | RO |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0625 |
| Corner Radius (mm) | 1.58 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7890 |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123F2-0318-RO 1125 |
| Manufacturers Catalog Number | N123F2-0318-RO 1125 |
| Overall Width (Decimal Inch) | 0.1250 |
| Insert Thickness (Decimal Inch) | 0.1693 |
