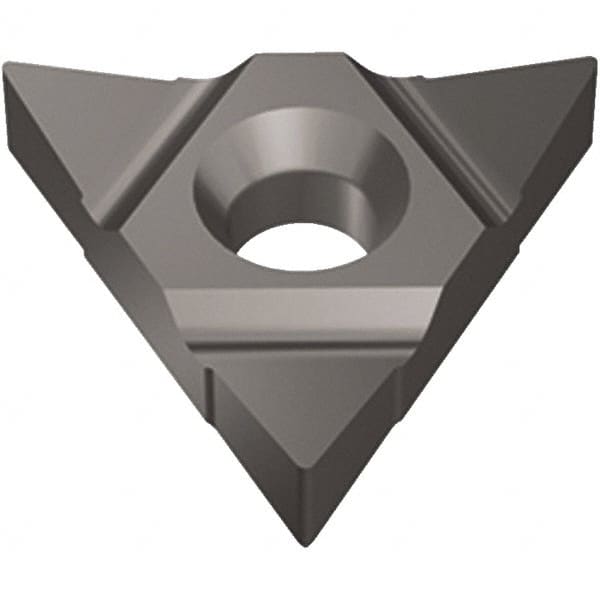

Kennametal - 16-48 TPI, Internal Thread, Partial Profile 55° Standard, KTMDU KC635M Grade Thread Mill Insert - Carbide, TiAlN Coating
Item #: 50500917
Brand: Kennametal
Model #: 5593682
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | KTMDU |
| Thread Type | Internal |
| Thread Standard | Partial Profile 55 Degrees |
| Threads Per Inch | 16-48 |
| Length (mm) | 11.00 |
| Manufacturer's Grade | KC635M |
| Material | Carbide |
| Coating | TiAlN |
| Coating Process | PVD |
| Inscribed Circle (mm) | 3.25 |
