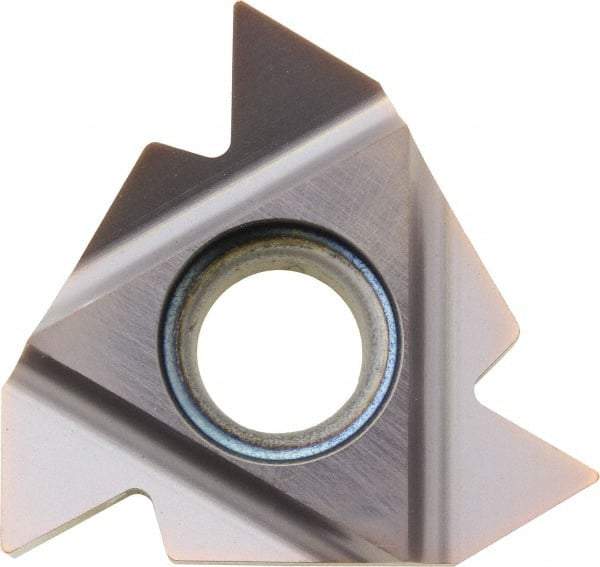

Kyocera - 22IR Internal Right Hand 7-5 Partial Profile 60° Laydown Threading Insert - Grade PR1115, TiAlN Coated Carbide, 12.7mm Inscribed Circle
Item #: 50474105
Brand: Kyocera
Model #: 8829898
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | PR1115 |
| Internal Threads Per Inch | 7-5 |
| Internal Pitch (mm) | 3.5 to 5 |
| Threads Per Inch | 7-5 |
| Pitch (mm) | 3.5 to 5 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1929 |
| Thickness (mm) | 4.90 |
| Included Angle of Threading Tip | 60 |
| Hole Diameter (mm) | 4.85 |
| Hole Diameter (Decimal Inch) | 0.1909 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.22 |
| Corner Radius (Decimal Inch) | 0.0087 |
