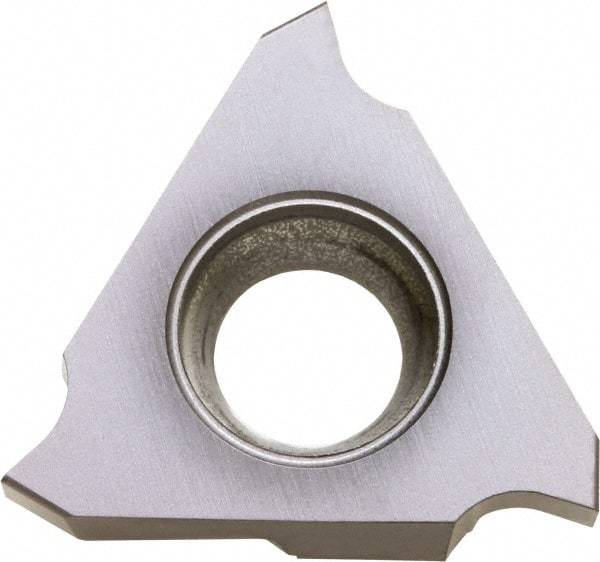

Kyocera - 43GBA Grade PR905, 3mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Left Hand, 1.5mm Corner Radius, TiAlN Finish
Item #: 50436351
Brand: Kyocera
Model #: 8830023
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | PR905 |
| Coating | TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 1.5000 |
| Corner Radius (Decimal Inch) | 0.059055 |
| Coating Process | PVD |
| Series | GBA |
| Manufacturers Catalog Number | GBA43L300-150R |
| Insert Thickness (Decimal Inch) | 0.1870 |
