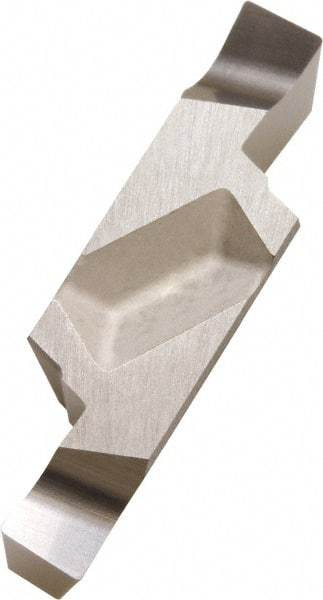

Kyocera - 400GVF C Grade PR1225, 4mm Cutting Width Carbide Grooving Insert - 6.8mm Max Depth of Cut, Right Hand, 0.4mm Corner Radius, Megacoat Finish
Item #: 50432921
Brand: Kyocera
Model #: 8837194
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 400 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 6.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2677 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Relief Angle | 2 |
| Chipbreaker | C |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Coating Process | PVD |
| Overall Length (mm) | 27.00 |
| Overall Length (Decimal Inch) | 1.0630 |
| Series | GVF |
| Rake Angle | 15 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFR400-040C |
| Insert Thickness (Decimal Inch) | 0.2756 |
| Insert Thickness (mm) | 7 |
