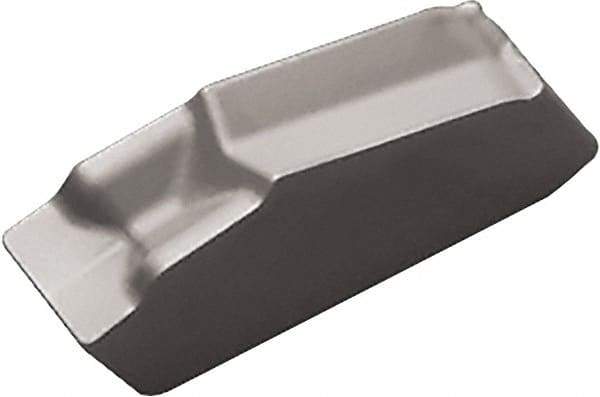

Kyocera - TK P PR1535 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0098" Cnr Rad, Megacoat Nano Coated
Item #: 50432012
Brand: Kyocera
Model #: 8844595
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TK |
| Insert Size | 3 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Manufacturer's Grade | PR1535 |
| Coating | Megacoat Nano |
| Series | TK |
| Chipbreaker | P |
| Full Radius | No |
| Multi-Use Application | Cut-Off |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.009843 |
| Corner Radius (mm) | 0.25 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TKN3-P |
