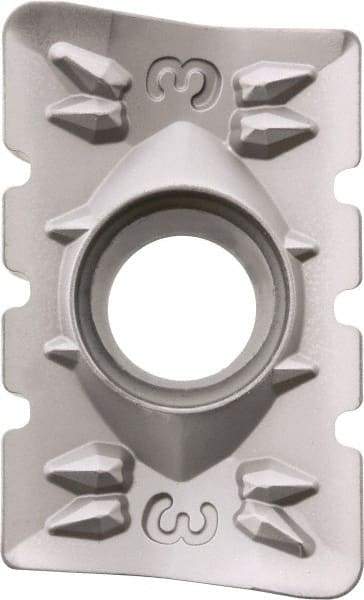

Kyocera - APMT250616 NB3 Grade PR1210 Carbide Milling Insert - Megacoat Finish, 6.35mm Thick
Item #: 50431071
Brand: Kyocera
Model #: 8831667
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APMT |
| Insert Size | 250616 |
| Material | Carbide |
| Manufacturer's Grade | PR1210 |
| Coating | Megacoat |
| Width (mm) | 15.88 |
| Width (Decimal Inch) | 0.6252 |
| Length (mm) | 25.00 |
| Length (Decimal Inch) | 0.9843 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | NB3 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | APMT250616ERNB3 |
