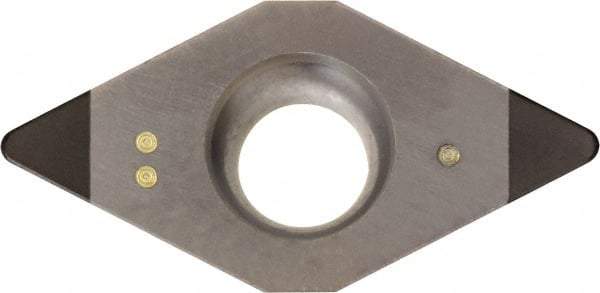

Kyocera - DCMW32.50.5 Grade KBN25M CBN Turning Insert - Megacoat Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 50426246
Brand: Kyocera
Model #: 8826833
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DCMW |
| Insert Size | 32.50.5 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KBN25M |
| Coating | Megacoat |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | 11T302T00815ME |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCMW32505T00315ME |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
