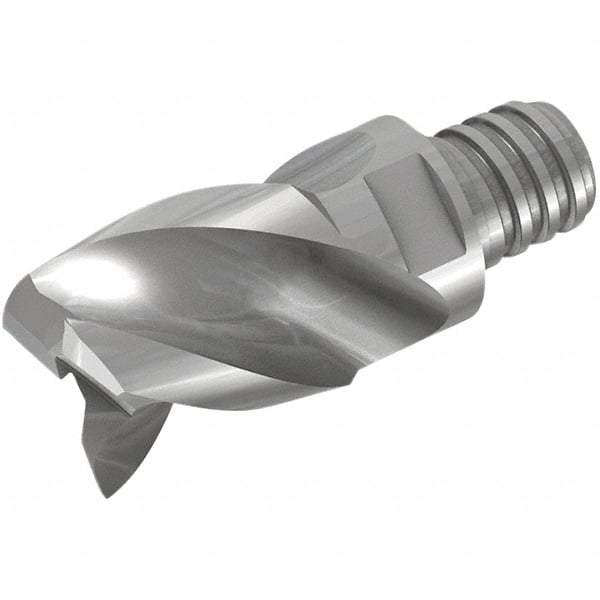

Iscar - MM EA Grade IC08 Carbide End Milling Tip Insert - Uncoated, 4 Flutes, 10mm Cutting Diam, 10mm Depth of Cut, 19mm Extension
Item #: 50098946
Brand: Iscar
Model #: 5667106
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Series | ChatterFree; Multimaster |
| Milling Tip Style | MM EA |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| Depth of Cut (mm) | 10.00 |
| Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Milling Tip Full Description | Roughing & Finishing End Mill |
| Corner Radius (Decimal Inch) | 0.0000 |
| Extension From Holder (mm) | 19.00 |
| Extension From Holder (Decimal Inch) | 0.7480 |
| Thread Size | T06 |
