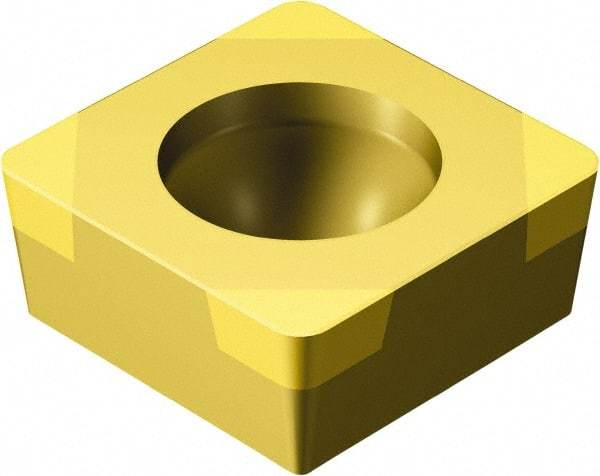

Sandvik Coromant - SCGW32.51 Grade 7015 CBN Turning Insert - 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 49673098
Brand: Sandvik Coromant
Model #: 5781799
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | SCGW |
| Insert Size | 32.51 |
| Material | CBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | 7015 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | SCGW09T304S01030F 7015 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 1.80 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Square |
