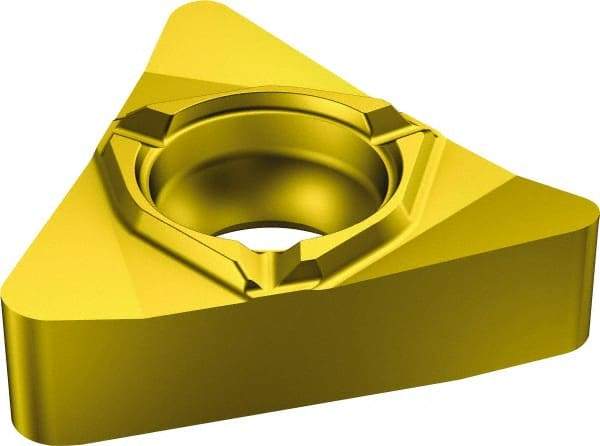

Sandvik Coromant - 26616 C Grade 1135, External Stub Acme Threading Insert - 12 TPI Ext Pitch, Left Hand Insert, Carbide
Item #: 49446404
Brand: Sandvik Coromant
Model #: 5907035
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Stub Acme |
| Manufacturer's Grade | 1135 |
| External Pitch/TPI | 12 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266LG16SA01F120E1135 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | C |
| Manufacturers Catalog Number | 5907035 |
