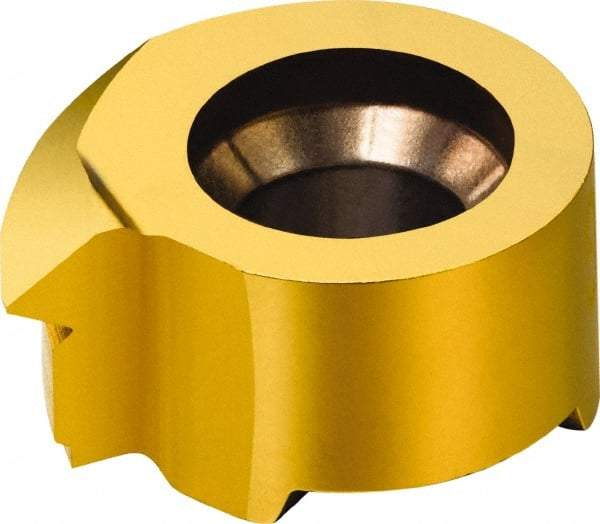

Sandvik Coromant - MB7 Grade 1025, Internal UN Threading Insert - 18 TPI Int Pitch, Left Hand Insert, Carbide
Item #: 49446297
Brand: Sandvik Coromant
Model #: 5849028
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 7 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | UN |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 18 TPI |
| Material | Carbide |
| ISO Number | MB07TH180UN10L1025 |
| Series | CoroCut MB |
| Included Angle of Threading Tip | 60 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (Decimal Inch) | 0.1535 |
| Manufacturers Catalog Number | 5849028 |
| Maximum Depth of Cut (mm) | 0.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.0299 |
