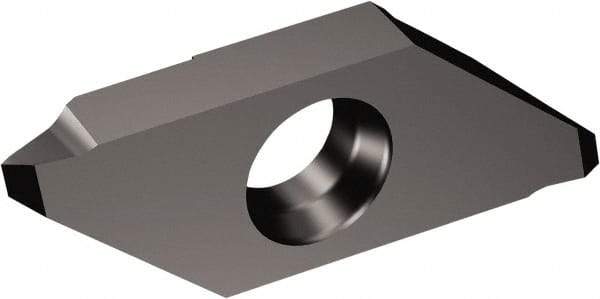

Sandvik Coromant - MAT3 Grade 1105, External UN 60° Threading Insert - 80 TPI Ext Pitch, Right Hand Insert, AlTiN Finish, Carbide
Item #: 49446271
Brand: Sandvik Coromant
Model #: 6765612
Exact Tooling IR#: 04
Features and Benefits
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MAT |
| Insert Size | 3 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | UN 60 Degrees |
| Manufacturer's Grade | 1105 |
| External Pitch/TPI | 80 TPI |
| Coating | AlTiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | MATR3UN01F800A1105 |
| Corner Radius (mm) | 0.04 |
| Corner Radius (Decimal Inch) | 0.0016 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Series | CoroCut XS |
| Included Angle of Threading Tip | 60 |
| Manufacturers Catalog Number | 6765612 |
