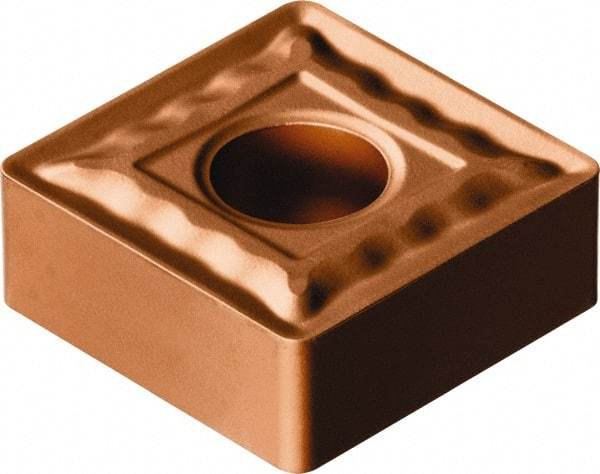

Sandvik Coromant - SNMG543 QM Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 90° Square, 1/2" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 49431380
Brand: Sandvik Coromant
Model #: 5750171
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 543 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | QM |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | SNMG150612QM1115 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5750171 |
| Primary Workpiece Material | M; S |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 14.68 |
| Maximum Depth of Cut (Decimal Inch) | 0.5780 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
