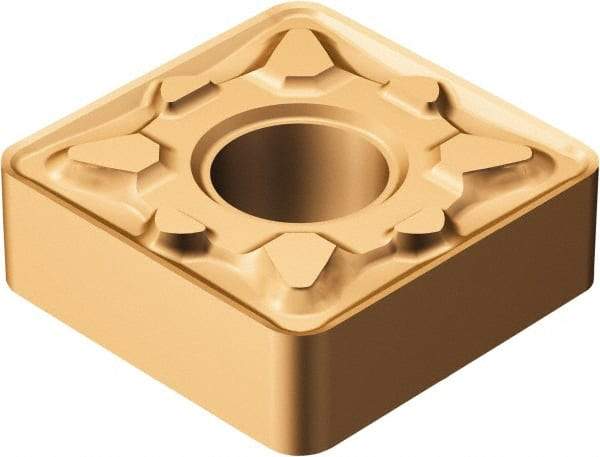

Sandvik Coromant - SNMG432 MM Grade 1115 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49426265
Brand: Sandvik Coromant
Model #: 5750080
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | MM |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | SNMG120408MM1115 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5750080 |
| Primary Workpiece Material | M |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 11.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.4685 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
