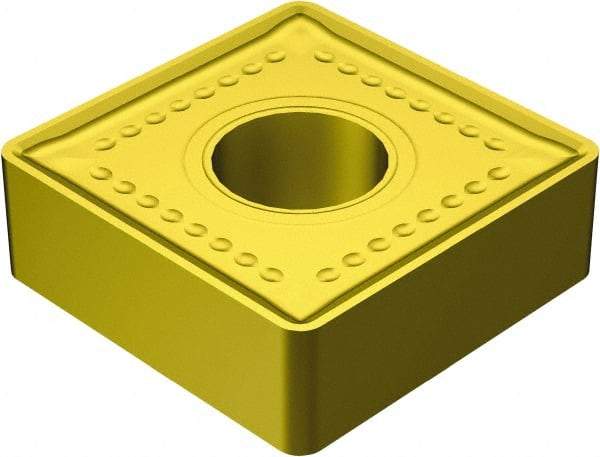

Sandvik Coromant - SNMM856 MR Grade 2035 Carbide Turning Insert - TiAlN/TiN Finish, 90° Square, 1" Inscr Circle, 5/16" Thick, 3/32" Corner Radius
Item #: 49422694
Brand: Sandvik Coromant
Model #: 5750839
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMM |
| Insert Size | 856 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | 2035 |
| Coating | TiAlN/TiN |
| Chip Breaker | MR |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| ISO Number | SNMM250724MR2035 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5750839 |
| Primary Workpiece Material | M |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 23.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9055 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
