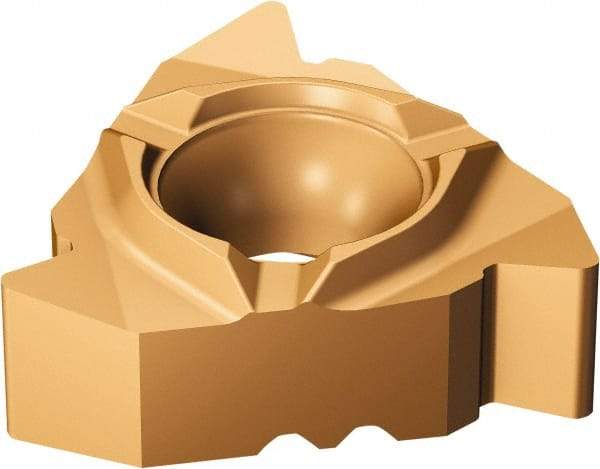

Sandvik Coromant - 26622 A Grade 1125, External API Round Threading Insert - 8 TPI Ext Pitch, Right Hand Insert, Carbide
Item #: 49378243
Brand: Sandvik Coromant
Model #: 5758237
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 22 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | API Round |
| Manufacturer's Grade | 1125 |
| External Pitch/TPI | 8 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RG22RD01A080E1125 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5758237 |
