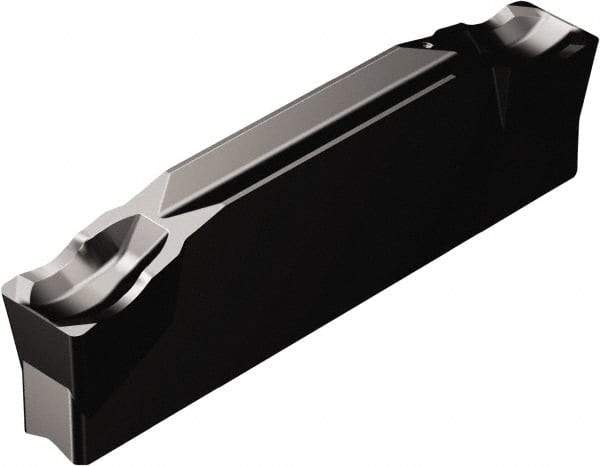

Sandvik Coromant - N123J2-...J CR 3115 Grade, 0.1969" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0156" Cnr Rad, TiCN/Al2O3 Coated
Item #: 49347800
Brand: Sandvik Coromant
Model #: 5736601
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123J2-... |
| Insert Size | J |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 3115 |
| Coating | TiCN/Al2O3 |
| Series | CoroCut 1-2 |
| Relief Angle | 6 |
| Chipbreaker | CR |
| Maximum Depth of Cut (mm) | 23.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.9331 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | MTCVD |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Insert Seat Size | J |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5736601 |
