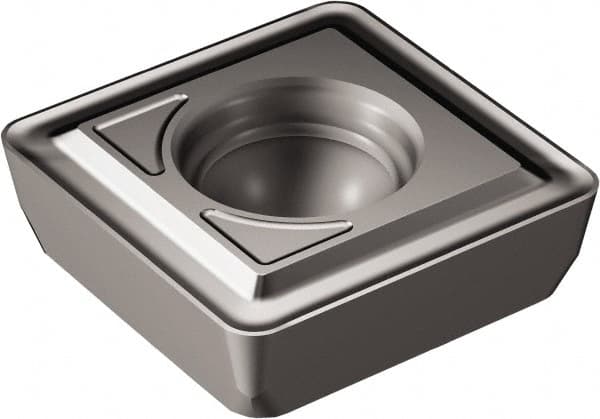

Sandvik Coromant - 880020204 GM Grade 4344 Carbide Indexable Drill Insert - TiAlN2 Finish, Square, 5.1mm Inscribed Circle
Item #: 49334899
Brand: Sandvik Coromant
Model #: 6770726
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 020204 |
| Material | Carbide |
| Manufacturer's Grade | 4344 |
| Inscribed Circle (mm) | 5.10 |
| Inscribed Circle (Decimal Inch) | 0.2008 |
| Thickness (mm) | 2.40 |
| Thickness (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| Coating | TiAlN2 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GM |
